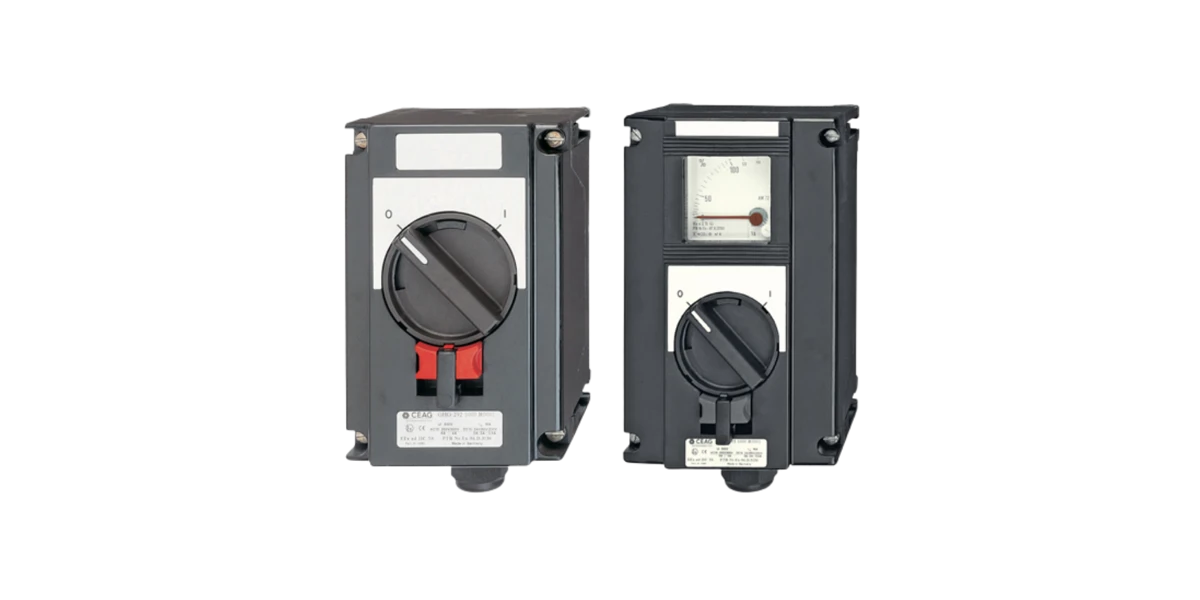

Eaton CEAG GHG29 Ex-e Control Switches.
Eaton CEAG GHG29 Ex-e Control Switches
Featuring snap-on/snap-off contact blocks and measuring instruments, along with a contoured enclosure that facilitates easy access to the connection terminals, the GHG29 has been designed for ease of installation. Additionally, a labyrinth seal in the cover provides IP66 ingress protection.
Available in impact-resistant fiberglass-reinforced polyester or powder coated cast aluminum, these control switches can withstand the most rugged hazardous and industrial operating conditions.
Eaton CEAG GHG29 Ex-e Control Switches
Eaton CEAG GHG29 Ex-e Control Switches
Marking accd. to 94/9/EC: Ex II 2 G Ex ed ia IIC T5/T6; Ex II 2 D Ex tD A21 IP66 T80°C
EC-Type Examination Certificate: PTB 99 ATEX 1163
IECEx Certificate of Conformity: IECEx BKI 07.0011
Marking accord. to IECEx: Ex ed ia IIC T5 or T6; Ex tD A21 IP66 T49°C
Permissible ambient temperature: -20°C to +40°C; -55°C to +47°C (T6) up to +55°C (T5) (optional)
Degree of protection accd. to EN 60529: IP66
Design features
Fiberglass-reinforced polyester models:
Decisive cost saving with the CEAG mounting system
Easily accessible connection terminals
Degree of protection: IP66
Cable connection range up to 6 mm2
Integrated locking facility
Optional forced contact available on request
Cast aluminum-silicon models:
Internationally approved
High mechanical, chemical and thermal resistance
Impact-resistant powder coating
Snap-on switch holder
Standard materials
Enclosure – black fiberglass-reinforced polyester or grey RAL 7031 cast aluminum-silicon (AlSi)
Ordering Information
Full Model Selection Guide for Eaton CEAG GHG Control Switches
Part Number | Rating | Housing Material | Switching / Technical Specifications |
|---|---|---|---|
GHG2922000R0003 | 16A / 500V | Glass-fibre reinforced polyester | 0 - I, Code 037, 1 x M25 entry |
GHG2922000R0004 | 16A / 500V | Glass-fibre reinforced polyester | I - 0 - II, Code 024, 1 x M25 entry |
GHG2922001R0001 | 16A / 500V | Glass-fibre reinforced polyester | HAND OFF AUTO, Code 023, 1 x M25 entry |
GHG2931000R0001 | 16A / 500V | Glass-fibre reinforced polyester | 0 - I, AM 72 measuring instrument, 1 x M32 |
GHG2941000R0001 | 16A / 500V | Cast aluminum - silicon (Grey) | 0 - I, Code 062, 1 x M25 entry |
GHG2941000R0002 | 16A / 500V | Cast aluminum - silicon (Grey) | 0 - I, Code 065, 1 x M25 entry |
GHG2941000R0003 | 16A / 500V | Cast aluminum - silicon (Grey) | 0 - I, Spring - Engaging - Spring, Code 067 |
GHG2941000R0004 | 16A / 500V | Cast aluminum - silicon (Grey) | 0 - I, Engaging - Engaging - Spring, Code 067 |
GHG2942000R0004 | 16A / 500V | Cast aluminum - silicon (Grey) | I - 0 - II, Code 024, 1 x M25 entry |
GHG2951000R0001 | 16A / 500V | Cast aluminum - silicon (Grey) | 0 - I, AM 72 measuring instrument, Code 062 |
GHG2951000R0002 | 16A / 500V | Cast aluminum - silicon (Grey) | 0 - I, AM 72 measuring instrument, Code 065 |
