Enertork.

TM Series Multi-Rotation Actuator

The TM series is a multi-rotation type actuator that can be applied independently to various applications such as valves, dampers, and floodgates. When combined with a reducer, it can also be applied to butterfly valves and other types of valves.

By customizing various options and characteristics based on the basic model, the TM series can be tailored to meet a wide range of operating conditions and environments, fulfilling diverse functional and technical requirements.

Features and Key Specifications of the TM Series

• Wide torque range available across the TM series product lineup.

• Customizable functions to meet specific customer requirements.

• Non-penetrating switch design completely prevents rainwater infiltration.

• All combined parts are double-sealed with V-type rings and O-type rings.

• Self-maintenance function applied during torque switch operation for ease of use.

• Waterproof design compliant with IP68 (8 meters, 72 hours).

• Complies with IEC standards with sufficient flame path design.

• Explosion-proof options available for fire protection (optional).

• Fire-retarding option available, certified by Lloyd’s Register of Shipping (UL 1709:2005) (optional).

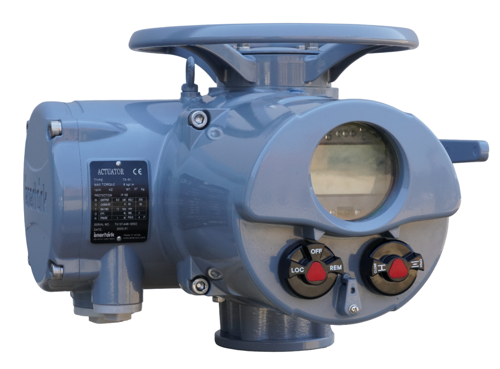

TX Series Non-Intrusive Multi-Turn Actuator

The TX series is a non-intrusive multi-turn type actuator that can be used independently for valves, dampers, and gates. When combined with a gearbox, it can also be applied to butterfly valves and ball valves.

By customizing various options and characteristics based on the basic model, the TX series can be configured to suit a wide range of operating conditions, ensuring that all functional and technical requirements of customers are met.

The TX series utilizes a high-precision absolute encoder for accurate position detection and a piezo sensor to directly measure torque, significantly enhancing control accuracy and operational reliability.

Features and Main Specifications of the TX Series

• Wide torque range from 15 to 1,200 Nm.

• Configurable as a separate type according to customer requirements.

• Non-penetrating switch with hall sensor design completely prevents rainwater infiltration.

• Magnetic holding function using electronic control when the torque switch is activated.

• 12-bit high-resolution absolute encoder ensures reliable position control.

• Mono graphic LCD display for maintenance and logging data review.

• Built-in battery allows position and status checking even when power is off.

• Remote control capability via IrDA wireless communication.

• Waterproof design compliant with IP68 (8 meters, 72 hours).

• Designed in accordance with IEC standards, ensuring sufficient flame path.

• Proportional control and position feedback via V and mA control methods (optional).

• Control and status monitoring via wired fieldbus communication (Profibus, Modbus, Foundation Fieldbus, HART) (optional).

• Convenient configuration and operation via Bluetooth communication (optional).

• Explosion protection compliant with Exd IIB T4 and Exd IIC T4 (optional).

• Fire-retarding option certified by Lloyd’s Register of Shipping (UL 1709:2005) (optional).

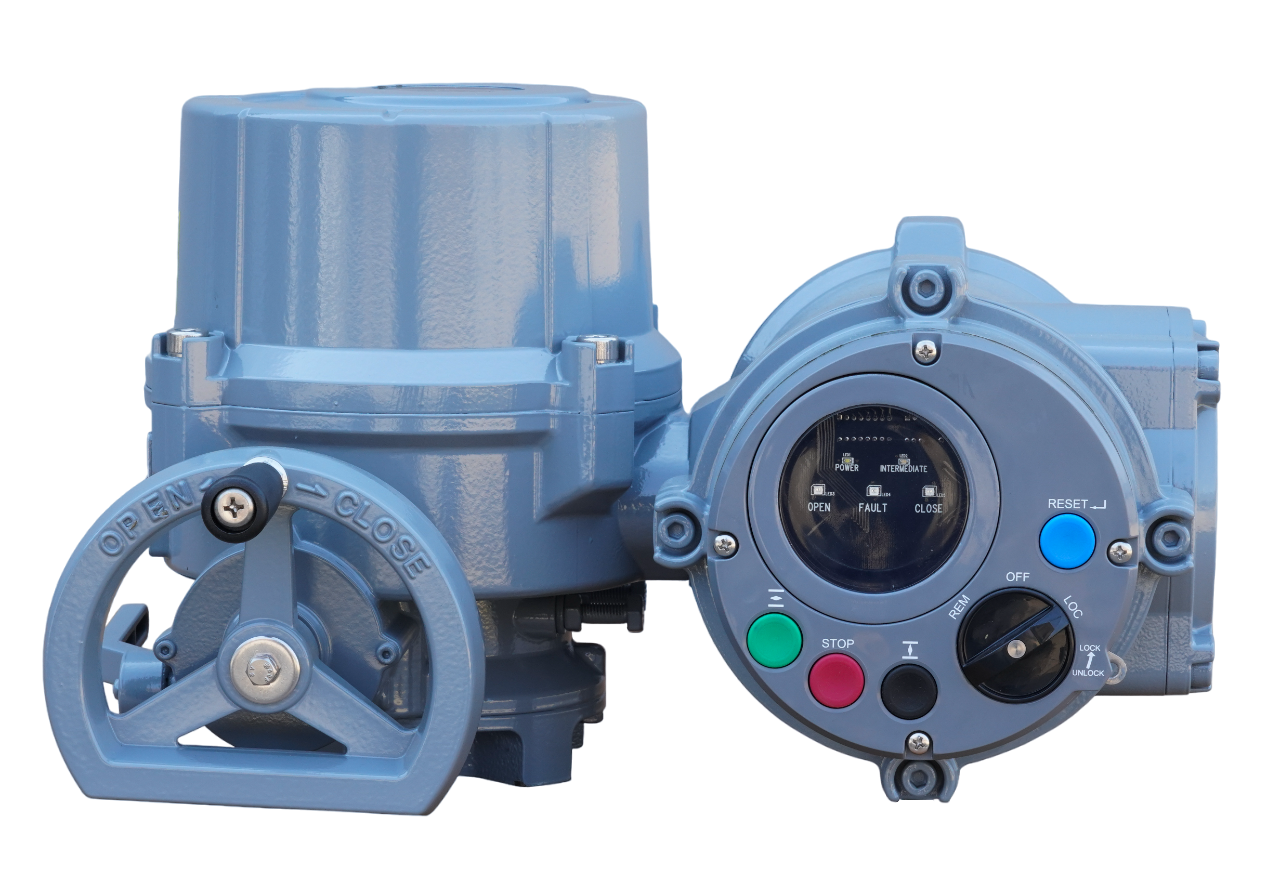

TQ Series Part-Turn Actuator

The TQ series is a part-turn type actuator designed for 90° rotation, suitable for use with ball valves, butterfly valves, plug valves, and dampers.

By customizing various options and characteristics based on the basic model, the TQ series can be adapted to a wide range of operating conditions, ensuring that all functional and technical requirements of customers are met.

Features and Main Specifications of the TQ Series

• Wide torque range from 10 to 3,000 Nm.

• Customizable functions according to customer requirements.

• Non-penetrating switch with hall sensor design completely prevents rainwater infiltration.

• All combined parts are double-sealed with V-type rings and O-type rings.

• Self-maintenance function added during torque switch operation for ease of use.

• Waterproof design compliant with IP68 (8 meters, 72 hours).

• Designed in accordance with IEC standards, ensuring sufficient flame path.

• Explosion protection compliant with Exd IIB T4 (optional).

• Fire-retarding option certified by Lloyd’s Register of Shipping (UL 1709:2005) (optional).

SMART Series Part-Turn Actuator

The SMART series is a part-turn type actuator designed for use with ball valves, butterfly valves, plug valves, and dampers. It can be applied independently without additional components.

The non-intrusive design allows setting and operation through various wireless devices without opening the actuator cover. In addition, the actuator is equipped with a potentiometer to ensure high accuracy and reliable performance at any position setting.

Features and Main Specifications of the SMART Series

• Wide torque range from 200 to 3,000 Nm.

• Configurable as a separate type according to customer requirements.

• Non-penetrating switch with hall sensor design completely prevents rainwater infiltration.

• Magnetic holding function using electronic control when the torque switch is activated.

• 4-line character LCD display for maintenance and logging data review.

• Remote control capability via IrDA wireless communication.

• Waterproof design compliant with IP68 (8 meters, 72 hours).

• Designed in accordance with IEC standards, ensuring sufficient flame path.

• Proportional control and position confirmation via V and mA control methods (optional).

• Control and status monitoring via wired fieldbus communication (Profibus, Modbus, Foundation Fieldbus, HART) (optional).

• Convenient configuration and operation via Bluetooth communication (optional).

• Explosion protection compliant with Exd IIB T4 (optional).

• Fire-retarding option certified by Lloyd’s Register of Shipping (UL 1709:2005) (optional).

TQ Integral Series Part-Turn Actuator

The TQ Integral Series combines the body of the TQ Basic with an integral case. It is a part-turn type actuator designed for use with ball valves, butterfly valves, plug valves, and dampers.

Both LOCAL and REMOTE operation are available via a 2-line character LCD and hall sensor. Operational status and system information such as faults are clearly provided to the user, and a wide range of functions can be configured through various parameter settings.

Features and Main Specifications of the TQ Integral Series

• Wide torque range from 200 to 3,000 Nm.

• Configurable as a separate type according to customer requirements.

• Non-penetrating switch with hall sensor design completely prevents rainwater infiltration.

• Magnetic holding function using electronic control when the torque switch is activated, helping to prevent damage to motors, valves, or floodgates caused by chattering.

• Internal cam detects torque and valve position (openness) and can be readjusted on-site.

• Selectable LED type or LCD type; LCD type is equipped with a 2-line character display and supports general data logging.

• Waterproof design compliant with IP68 (8 meters, 72 hours).

• Designed in accordance with IEC standards, ensuring sufficient flame path.

• Proportional control and position confirmation via V and mA control methods (optional).

• Control and status monitoring via wired fieldbus communication (Profibus, Modbus, Foundation Fieldbus, HART) (optional).

• Explosion protection compliant with Exd IIB T4 (optional).

• Fire-retarding option certified by Lloyd’s Register of Shipping (UL 1709:2005) (optional).
