MTL GECMA Workstation Personal Computer.

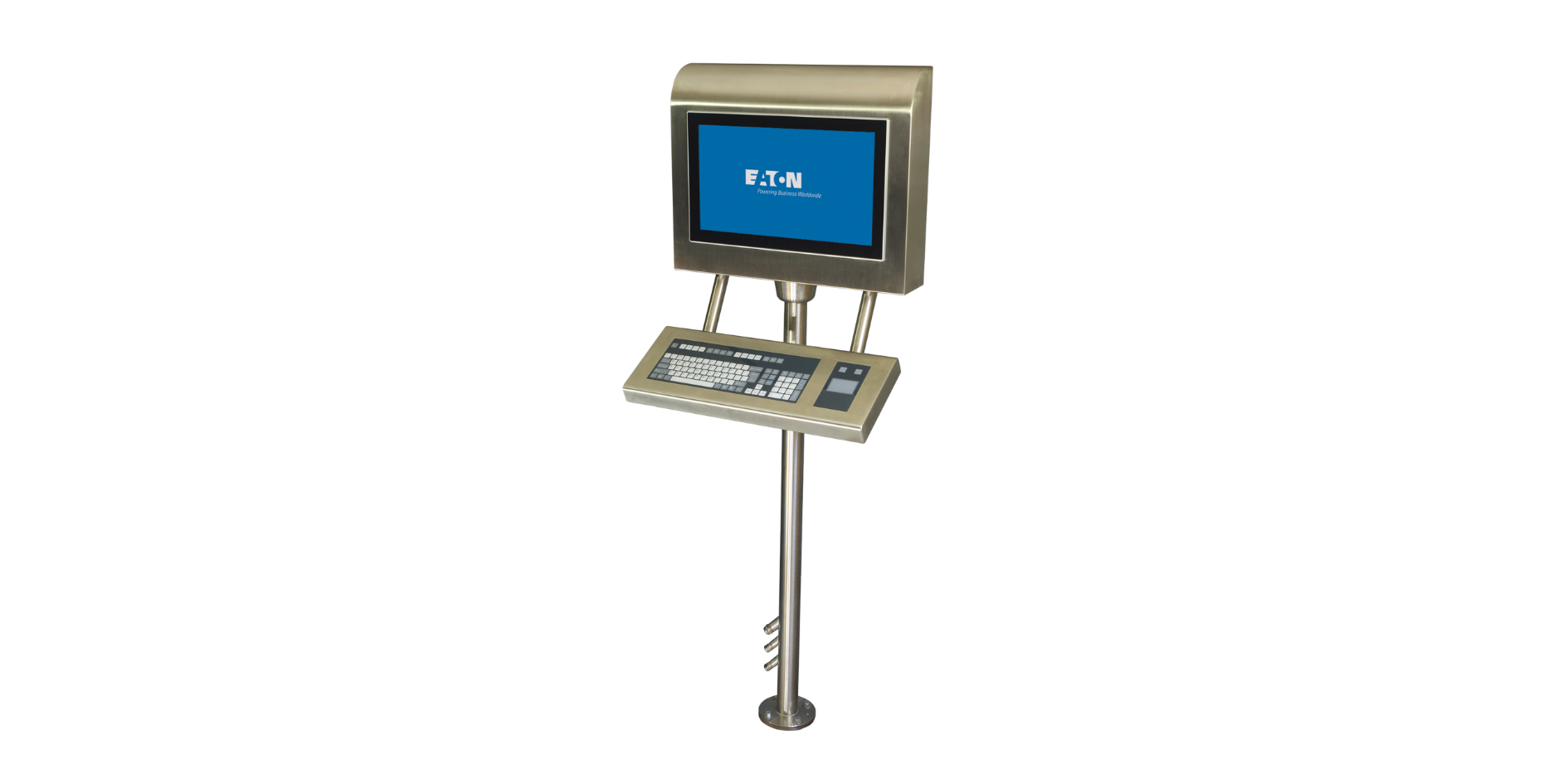

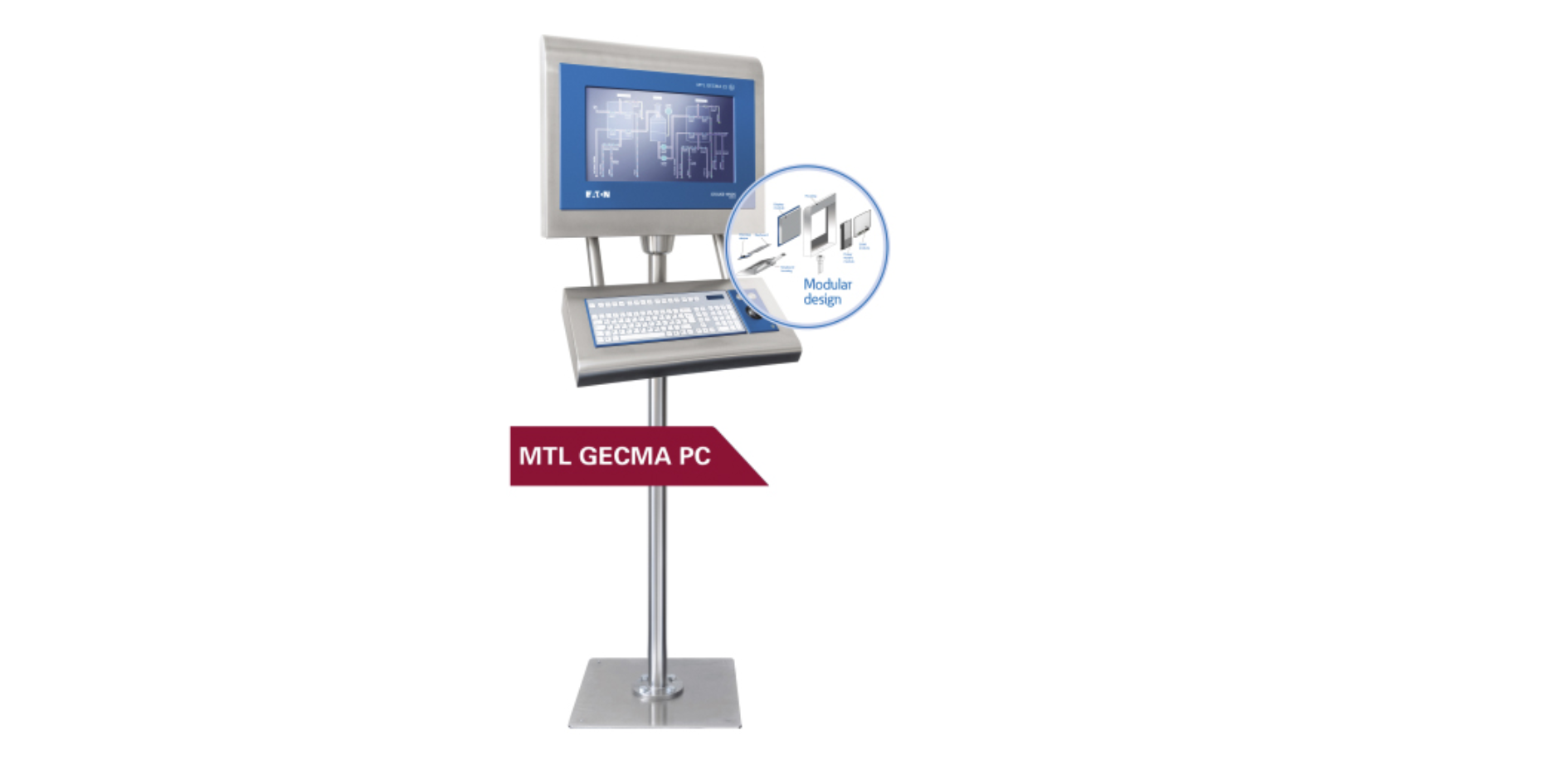

MTL GECMA Workstation Personal Computer
MTL GECMA Workstation PC provides a powerful stand-alone solution for applications such as packing machines and is specified for use in Ex Zone 1/2/21/22 hazardous areas.
MTL GECMA Workstation Personal Computer
Safety
Individually certified modules ensuring a high level of safety in hazardous areas
Reliability
Fibre optic or copper data transmission providing stable and reliable communication
Ease of Use
Dual Ethernet port connection supporting network redundancy
Certifications and Compliances
ATEX and IECEx approved
Suitable for Zone 1 installation
Gas group IIC
Temperature class T4
Certified ambient temperature range: -30°C to +60°C (configuration dependent)
CE marked in compliance with ATEX, EMC, LVD and RoHS Directives
Design Features
Quad Core 2 GHz CPU providing powerful processing for application software
4 GB RAM, expandable up to 8 GB for increased memory capacity
64 GB SSD, expandable up to 256 GB to meet increased data storage requirements
Ex i and Ex e interfaces allowing easy integration of locally connected field devices
Standard Windows operating system with remote-access software for seamless integration into existing networks
Dual Ethernet ports providing network redundancy and increased system availability
Unique and innovative modular platform concept reducing installation, commissioning and operational costs
Individually certified modules enabling quick and safe on-site maintenance
Available with 19", 22" Full HD and 24" displays using LED backlight technology for optimal viewing quality
Lightweight, slimline design optimising space utilisation and providing application flexibility
Fibre optic or copper communication enabling cost-effective, reliable and high-volume data transmission
About Eaton MTL Instruments
Eaton MTL Instruments, a division of Eaton Corporation (USA), is a global leader in surge protection solutions for signal, data and power applications. With over 50 years of experience, MTL products are engineered to perform reliably in harsh and hazardous environments.
Viet Thang Loi Technology Company Limited is the authorized distributor of Eaton MTL Instruments (MTL) and Eaton Crouse-Hinds (CEAG) in Vietnam. Please contact us for more details.
More detail
Specification | 19" Remote Terminal | 22" Remote Terminal | 24" Remote Terminal |
|---|---|---|---|
ELECTRICAL | |||
Screen size | 19 inch (48 cm) diagonal | 21.5 inch (54 cm) diagonal | 24 inch (61 cm) diagonal |
Screen type | LCD TFT with LED backlight | ||
Display resolution | 1280 × 1024, 5:4, 16.7M colours | 1920 × 1080, 16:9, 16.7M colours | 1920 × 1200, 16:10, 16.7M colours |
Brightness | 250 cd/m² | ||
Contrast ratio | 1000:1 (typical) | ||
Viewing angle | 170°/160° typical at CR ≥ 10 | ||
Touchscreen (optional) | 5-wire resistive glass touchscreen | ||
Transmission technology | Proprietary full digital KVM transmission | ||
TERMINAL UNIT | |||
Power supply | AC 100–240VAC 50/60Hz, DC 20–30VDC | ||
Input power | 50W typical, 100W maximum | ||
Pointing devices | 2 × Ex i PS/2 (keyboard & pointing device) | ||
Universal port | 4 × USB 2.0 intrinsically safe | ||
Serial port | RS232 | ||
Data cable (copper) | CAT 6A or higher recommended | ||
Fibre optic cable | Multimode or Single mode | ||
MECHANICAL | |||
Housing material | Stainless steel V2A (EN 1.4301 / AISI 304) | ||
Weight | 65 kg | 69 kg | 75 kg |
Dimensions (W × H × D) | 509 × 429 × 50 mm | 610 × 400 × 50 mm | 675 × 461 × 50 mm |
Module assembly (without housing) | 509 × 429 × 125 mm | 610 × 400 × 125 mm | 675 × 461 × 125 mm |
SAFE AREA UNIT | |||
Power supply | 100–240VAC 50/60Hz | ||
Input power | 6W typical, 25W max @ 4-fold rack | ||
Interfaces | USB, RS232 | ||
Video input / output | DVI-D (DVI-I / VGA on request) | ||
ENVIRONMENTAL | |||
Temperature | Operating: -10°C to +50°C | ||
Ingress protection | IP66 (front side) | ||
CERTIFICATION | |||
Authority | IECEx: SIR 14.0031X / ATEX: 14ATEX5062X | ||
Approved for | Ex mb[ib] op is IIC T4 Gb (with OP IS interface) | ||
