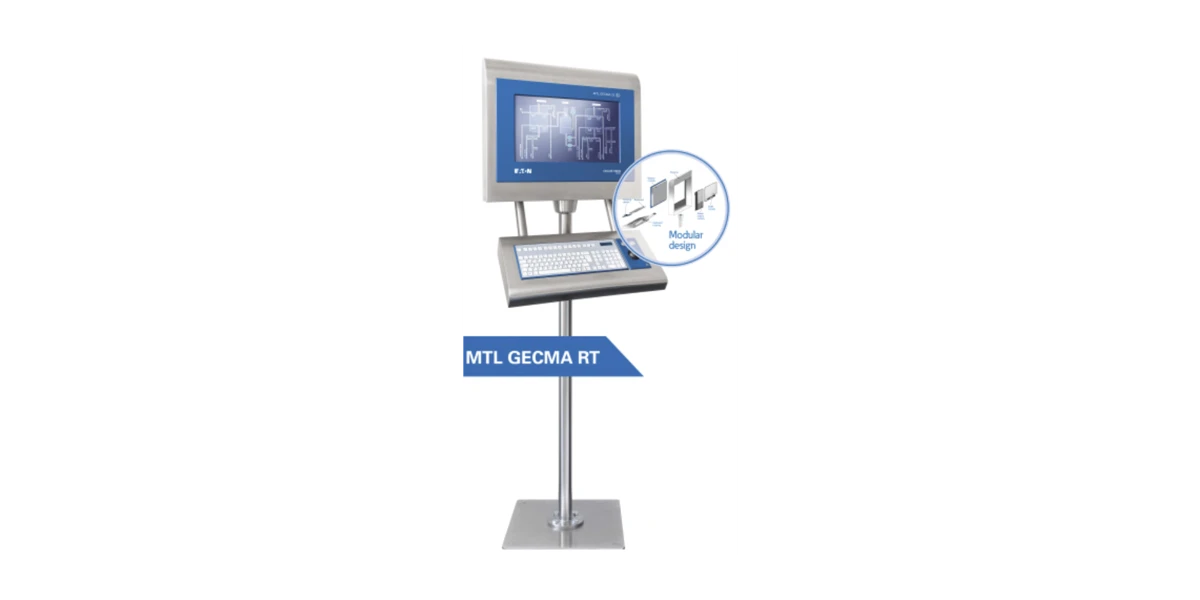

MTL GECMA Workstation Remote Terminal.
MTL GECMA Workstation Remote Terminal
MTL GECMA Workstation PC provides a powerful stand-alone solution for applications such as packing machines and is specified for use in Ex Zone 1/2/21/22 hazardous areas.
MTL GECMA Workstation Remote Terminal
Safety
Unique IS connection and alarm visualisation
Reliability
Fibre Optic or Copper data transmission
Ease of Use
Single line data transmission
MTL GECMA Remote Terminal Workstations
The unique, modular MTL GECMA RT remote operating terminal for Ex Zone 1/2/22 helps optimise productivity, reduce costs and increase safety.
Certifications and Compliances
ATEX & IECEx approved
Zone 1 mounting
Gas group IIC
Temperature class T4
Certified for -30°C to +60°C (configuration dependent)
CE marked for ATEX, EMC, LVD and RoHS Directives
Design Features
Unique and innovative platform concept – modular design reduces installation, commissioning and operating costs
Individually certified modules for fast and easy on-site maintenance
19", 22" Full HD and 24" displays with LED backlight for optimal image quality and viewing
Lightweight, slimline design optimises space and offers application flexibility
Fibre Optic or Copper data transmission for cost-effective, reliable and high-volume data transfer
Unique intrinsically safe connection and alarm visualisation for safe, continuous operation in hazardous areas
Single line data transmission for simple installation and reliable communication
About Eaton MTL Instruments
Eaton MTL Instruments, a division of Eaton Corporation (USA), is a global leader in surge protection solutions for signal, data and power applications. With over 50 years of experience, MTL products are engineered to perform reliably in harsh and hazardous environments.
Viet Thang Loi Technology Company Limited is the authorized distributor of Eaton MTL Instruments (MTL) and Eaton Crouse-Hinds (CEAG) in Vietnam. Please contact us for more details.
More detail
Specification | 19" Remote Terminal | 22" Remote Terminal | 24" Remote Terminal |
|---|---|---|---|
ELECTRICAL | |||
Screen size | 19 inch (48 cm) diagonal | 21.5 inch (54 cm) diagonal | 24 inch (61 cm) diagonal |
Screen type | LCD TFT with LED backlight | ||
Display resolution | 1280 × 1024, 5:4, 16.7M colours | 1920 × 1080, 16:9, 16.7M colours | 1920 × 1200, 16:10, 16.7M colours |
Brightness | 250 cd/m² | ||
Contrast ratio | 1000:1 (typical) | ||
Viewing angle | 170°/160° typical at CR ≥ 10 | ||
Touchscreen (optional) | 5-wire resistive glass touchscreen | ||
Transmission technology | Proprietary full digital KVM transmission | ||
TERMINAL UNIT | |||
Power supply | AC 100–240VAC 50/60Hz, DC 20–30VDC | ||
Input power | 50W typical, 100W maximum | ||
Pointing devices | 2 × Ex i PS/2 (keyboard & pointing device) | ||
Universal port | 4 × USB 2.0 intrinsically safe | ||
Serial port | RS232 | ||
Data cable (copper) | CAT 6A or higher recommended | ||
Fibre optic cable | Multimode or Single mode | ||
MECHANICAL | |||
Housing material | Stainless steel V2A (EN 1.4301 / AISI 304) | ||
Weight | 65 kg | 69 kg | 75 kg |
Dimensions (W × H × D) | 509 × 429 × 50 mm | 610 × 400 × 50 mm | 675 × 461 × 50 mm |
Module assembly (without housing) | 509 × 429 × 125 mm | 610 × 400 × 125 mm | 675 × 461 × 125 mm |
SAFE AREA UNIT | |||
Power supply | 100–240VAC 50/60Hz | ||
Input power | 6W typical, 25W max @ 4-fold rack | ||
Interfaces | USB, RS232 | ||
Video input / output | DVI-D (DVI-I / VGA on request) | ||
ENVIRONMENTAL | |||
Temperature | Operating: -10°C to +50°C | ||
Ingress protection | IP66 (front side) | ||
CERTIFICATION | |||
Authority | IECEx: SIR 14.0031X / ATEX: 14ATEX5062X | ||
Approved for | Ex mb[ib] op is IIC T4 Gb (with OP IS interface) | ||
