MTL Network surge protection - MTL ZB range
The application of high-speed Ethernet and Power over Ethernet (PoE) devices is increasing dramatically in industries such as process, industrial, manufacturing, intelligent transportation systems (ITS), and Security. The ZB-4PPOE version is designed to IEEE802.3 bt standards to meet the highest power requirements of 4-pair POE (4PPOE) and offers 20KA (8/20 µS) surge rating to protect the Ethernet infrastructure.
ZoneBarrier range has a 10-year “No fuss” warranty and Ethernet-compatible versions are UL497B certified. 2459x versions are available with IECEx and ATEX certification to Ex ia.
MTL Network surge protection - MTL ZB range

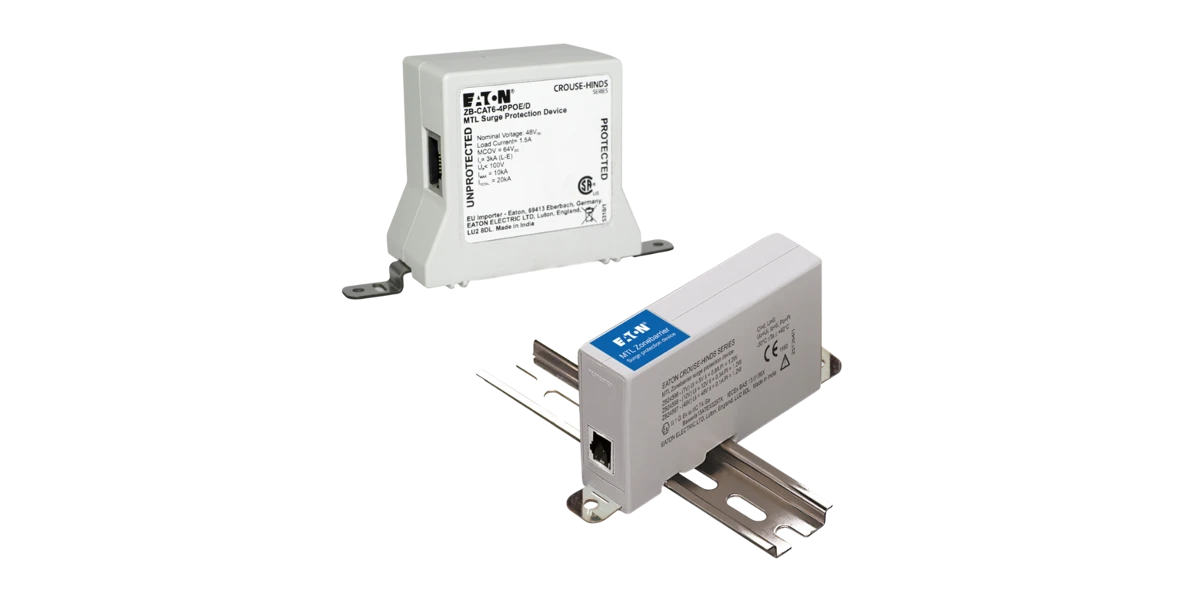

The MTL Network surge protection - MTL ZB range from the Crouse-Hinds series are a uniquely modular system designed for data, signal line, and telecom protection. It supports a wide range of applications including 24V, 4-20mA current loops, RS232, RS485, RS422, and high-speed Ethernet networks.
Design features
Performance | Flexibility | Installation ease |
Up to 20kA Surge Capacity | Models for Ethernet, POE++, Telecom, Data and Signaling applications | DIN Rail or Surface Mount |
Certifications and compliances
IEC:
IECEx: Ex ia IIC T4 Ga
EC: II 1G Ex ia IIC T4 Ga
NEC:
UL 497B Listed
Design features
Up to 20 kA surge capacity
Models for Ethernet, PoE++, Telecom, Data and Signaling applications
DIN rail or surface mount
3-stage hybrid protection circuit
Precise voltage limiting characteristics
Shielded RJ45 connectors
10-year warranty
Selected models with UL 497B listing
Standard materials
Casing: Molded plastic
Ordering Information
Model | Application | Connector | Certifications |
|---|---|---|---|
ZB-CAT6-4PPOE/D | 1000-Base-T Cat 6, High Power PoE (4PPoE) according to IEEE 802.3bt | RJ45 | UL 497B |
ZB24596 | 1000-Base-T Cat 6 | RJ45 | UL 497B, ATEX, IECEx |
ZB24597 | PoE according to IEEE 802.3af & at | RJ45 | UL 497B, ATEX, IECEx |
ZB24598 | 1000-Base-T Cat 6 Industrial Ethernet | RJ45 | UL 497B, ATEX, IECEx |
ZB24501 | Dial up | RJ11 / RJ45 | UL 497A |
ZB24503 | Leased line | RJ11 / RJ45 | UL 497A |
ZB24504 | Leased line | Terminal strip | UL 497A |
ZB24505 | Digital data | RJ48S | UL 497A |
ZB24525 | Dial up | RJ11 / RJ45 | CE |
ZB24558 | T1 | RJ48C | UL 497B |
ZB24562 | ADSL | RJ11 / RJ45 | CE |
ZB24536 | 4 wire + shield, 4–20 mA | Terminal strip | CE |
ZB24539 | 2 wire + shield, 4–20 mA | Pluggable terminal strip | CE |
ZB24542 | 6 wire, 4–20 mA | Pluggable terminal strip | CE |
ZB24547 | 4 wire + 2 shield, 4–20 mA | Pluggable terminal strip | CE |
ZB24540 | 100-Base-T, 8 wire | RJ45 | UL 497B |
ZB24550 | 100-Base-T, 2 × 4 wire | 2 × RJ45 | CE |
