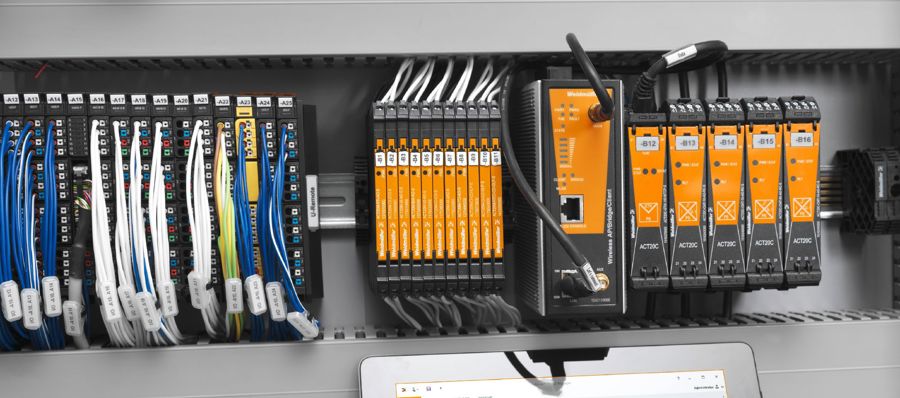

Weidmüller signal conditioners (ACT20)
Weidmüller ACT20 signal conditioners and isolators: 4–20 mA/0–10 V, temperature and frequency; ACT20C with Ethernet/Modbus TCP and FDT/DTM configuration.
- FDT/DTM software via Ethernet to configure locally or remotely
- Station building with Plug & Produce function
- Ethernet uplink: Modbus TCP
- Power/data via railbus
Powerful isolating amplifiers
Considering the increase of automation, isolating amplifiers are required which convert, isolate, monitor, protect and visualise your digital and analogue signal values from industrial and process automation, e.g. temperature, pressure, level, flow volumes, weight, and speed.
Our signal converters for DC standard signals, 4-20 m A and 0-10 V isolating amplifiers, switching amplifiers, frequency converters, and threshold switches are characterised by a high level of accuracy, universality and a wide assortment of variants.
Our product range for analogue signal conditioning
ACT20C: the connective
With communication-capable interface, our ACT20C can be used for condition monitoring and diagnostics
Your benefits
- FDT/DTM software via Ethernet to configure locally or remotely
- Station building with Plug & Produce function
- Ethernet uplink: Modbus TCP
- Power/data via railbus
ACT20X: the intrinsically safe
Safe signal conversion in compliance with standards of the process industry
Your benefits
- A wide range of functions for separation and conditioning of intrinsically safe signals
- Meets strict standards for the process industry due to SIL capability; applicable in EX areas 0, 1, 2, and 20, 21, 22
- Simple configuration via FDT/DTM software
- HART-protocol transparent
- Certification: ATEX, IECEX, FM, cULus, DNV GL
ACT20P: the multifaceted
Ideally suited for the wide range of practical requirements in the process industry and energy technology.
Your benefits
- Precise and unique signal transducer
- Easy configuration with display or FDT/DTM software or DIP switches
- Socket blocks with release lever for an easy maintenance
- Connection terminals with coding to prevent accidental mismatches
- More space in the cabinet due to a width of only 12.5 mm with two channels
ACT20M: the slimmest
Extremely space-saving with a width of only 6 mm.
Your benefits
- Easy and quick installation due to powersupply via CH20M DIN railbus
- Easy configuration via DIP switches or FDT/DTM software
- Extensive approvals, e.g. ATEX, IECEX, GL, DNV
- Robust against interference
- High packing density per channel
- Certifications: ATEX, UL, DNV, FM
As the official distributor of Weidmuller in Vietnam, we supply Weidmuller signal converters and other Weidmuller products.
