Liquid Controls

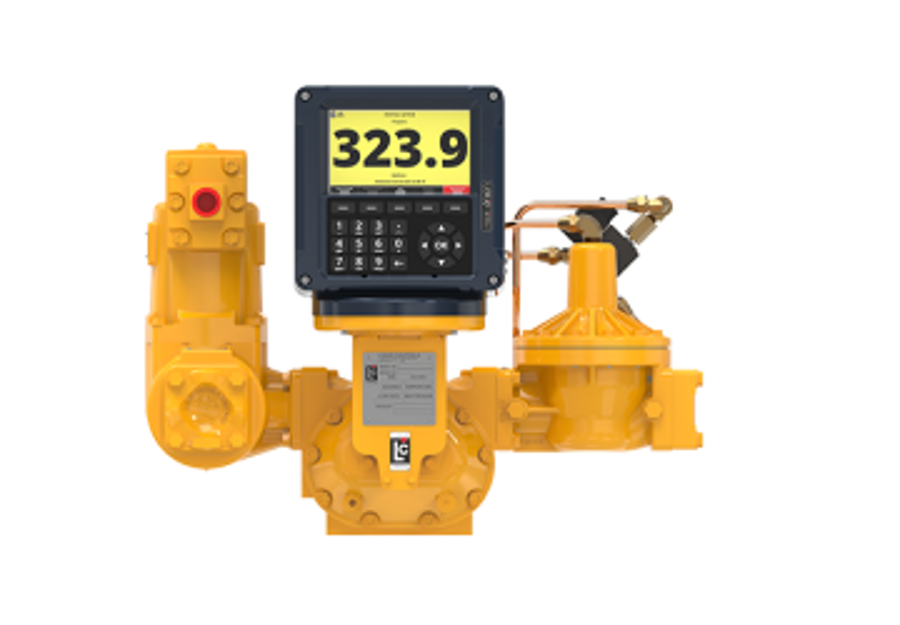

Liquid Controls positive displacement flow meters
Liquid Controls positive displacement meters (M, MA, MS series) for fuels: accurate and durable, up to 3,785 L/min, for custody transfer.
- High, long-term accuracy
- Easy to operate and maintain
- Flow rates up to 3,785 L/min
- Suitable for custody transfer
LC M-Series™ Meters
Size: M-5®, M-7®, M-10®, M-15®, M-25®, M-30®, M-40®, M-60®, M-80®
Max Capacity: 800 GPM / 3,028 LPM (180 M3/hr)
Max Pressure: 150 PSI / 10.3 Bar / 1034 kPa
Max Viscosity: 30-1,500,000 SSU, or 1cP to 325,000cP
Temperature Range: -40°F to 160°F
LC MA® Series Positive Displacement Meters
Size: MA-4®, MA-5®, MA-7®, MA-15®
Max Capacity: 200GPM / 747 LPM
Max Pressure: 350 PSI / 24 Bar / 2413 kPa
Temperature Range: -40° to 185°F , -40° to 85°C
MSA And MSAA Series Positive Displacement Meters
Size: MSA 30, 75 and MSAA 30, 40, 75, 120
Max Capacity: 1000 GPM / 3,785 LPM
Max Pressure: MSA: 300 PSI, 20.7 BAR, 2068 kPa; MSAA: 285/PSI, 19.7 BAR, 1975 kPa
Max Viscosity: 30-1,500,000 SSU, or 1cP to 325,000cP
Temperature Range:-40°F to 160°F
