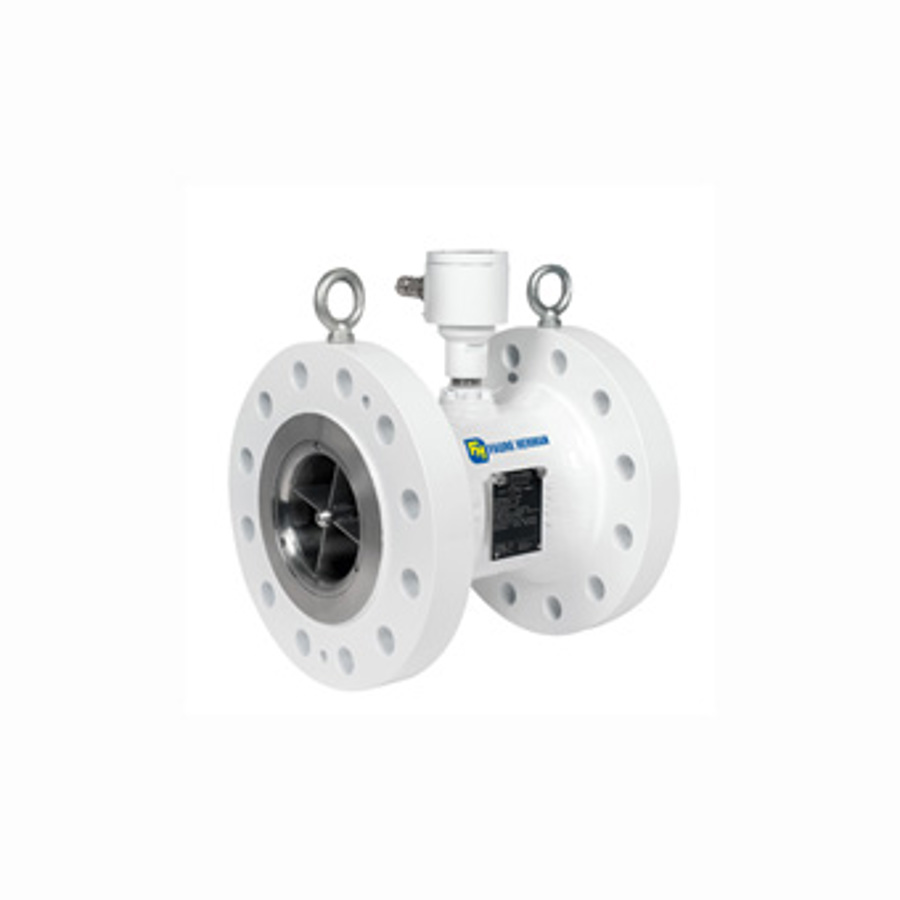

Faure Herman helical turbine flow meters

Measurement by HELICAL TURBINE METER uses the velocity of the flowing liquid to rotate a uniquely designed Dual Bladed Rotor at a speed that is proportional to fluid Velocity.

Available flow rate ranges from 50l/h to 5500 m3/h, in sizes ranging from 1/2″ to 18″.

Main applications

The TZN CUS turbine meter is designed for custody transfer measurement of liquids containing DRA, wax, fibers, sand, chalk.

The TZN Oil production allocation, FSO, FPSO metering, Tanker loading/offloading, Storage management, Pipeline measurement

Key customer advantages

• Reduce low reporting issue due to meter factor shifts (The TZN CUS)

• Custody transfer accuracy

• Low pressure drop & back pressure

• Removable cartridge

• Low cost of ownership

Performances

• Flow measurement accuracy +/- 0.15%

• Viscosity range 0.1 to 350 cSt (higher upon request)

• Repeatability 0.04 % (+/- 0.02 %)

• Flowrate range 7 to 5500 m3/h (TNZ CUS)

• Meter size: 3″ to 18″ (TNZ CUS)

• Repeatability 00.6 to 6000 m3/h(TNZ)

• Meter size: 0.5″ to 18″ (TNZ)

OIML R117-1 / MID (class 0.3), ATEX, IECEx (Ex d), PED, EMC, UL / cUL certified, plus several other worldwide certifications.

Main applications

Crude oil production, Refinery & petrochemical plants, Tank farm management, Pipeline fiscal metering, Power industry. Product to be discontinued.

Key customer advantages

• High measurement accuracy and stability

• Low pressure drop & back pressure

• Low cost of ownership

• Cost-effective solution to accurate measurements

• CS & SS material up to Class 300

Performances

• Flow measurement accuracy +/- 0.50%

• Viscosity range 0.8 to 10 cSt

• Repeatability 0.04 % (+/- 0.02 %)

• Flowrate range 10 to 3000 m3/h

• Meter size: 1″ to 12″

ATEX, IECEx (EX d), PED, EMC, UL / cUL certified, plus several other worldwide certifications.

Main applications

Airport refueling, wagon & road tankers, loading / off loading

Key customer advantages

• Small size

• Horizontal & vertical position assembly

• Removable cartridge

• Support reverse flow

• Custody accuracy

• Integrated flow straightner

Performances

• Flow measurement accuracy +/- 0.15% on 1 product to +/- 0.25% on 2 products

• Viscosity range from 0.1 to 15 cSt

• Repeatability 0.04 % (+/- 0.02 %)

• Flowrate range from 3 to 300 m3/h

• Meter size: 3″ to 4″

OIML R117-1 / MID (class 0.5), ATEX, IECEx (Ex d), PED, EMC, UL / cUL certified, plus several other worldwide certifications.
