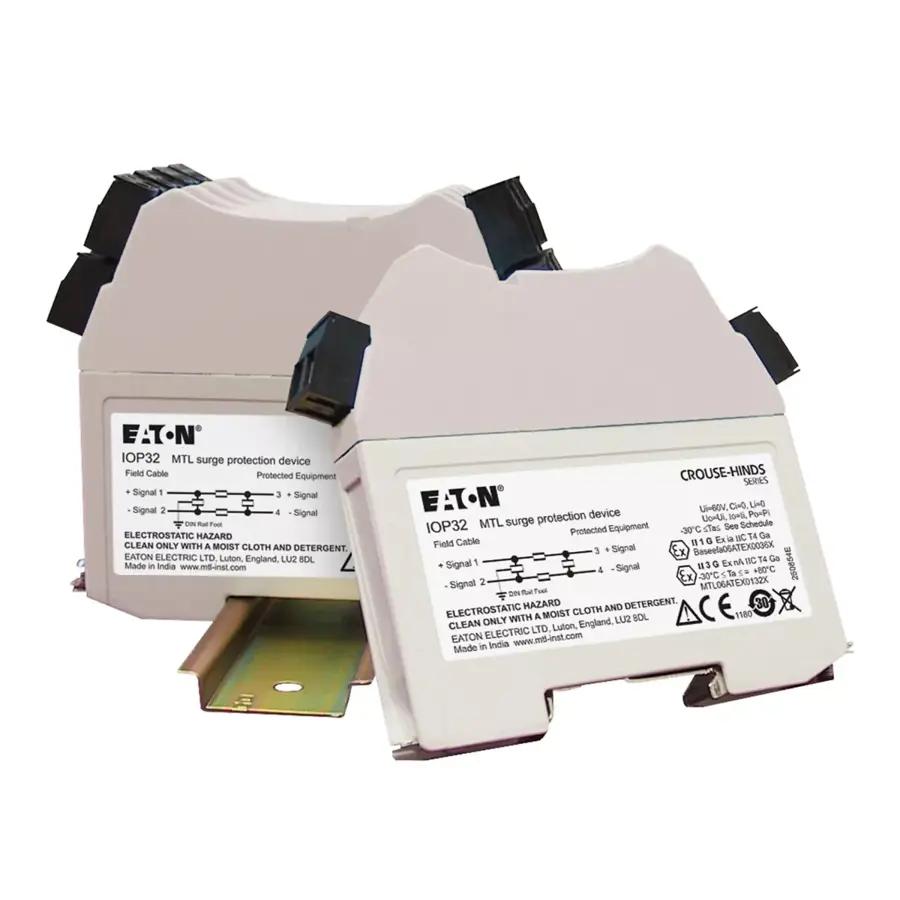

Eaton MTL IOP digital & analogue I/O surge protector
MTL IOP: economical surge protection for digital and analogue I/O – 20 kA hybrid circuit, 6 mm per loop, removable terminals, Ex ia and Ex n approvals.
- Removable terminals for fast connection and testing
- No special tools for loop maintenance
- Hybrid circuit rated 20 kA (8/20 µs)
- Self-restoring after each surge
Overview
The MTL IOP range is a cost-effective surge protector for digital and analogue I/O. A 20 kA hybrid circuit, very narrow width and removable terminal blocks optimise panel space while providing reliable protection.
Features
- Removable terminal blocks for quick connection and loop testing
- Hybrid gas-tube and semiconductor circuit, 20 kA (8/20 µs)
- Self-restoring after surges
- IOP32 – one 2-wire loop; IOP32D and IOP-AC – two loops; IOP HC32 – high current up to 5 A; IOP-AC – two 120/240 V AC circuits
- Approvals: ATEX Ex ia IIC T4 Ga, Ex n; IECEx; FM (USA & Canada); UL94-V0
- Operating temperature –40 °C to +80 °C
Viet Thang Loi Technology (VTL) is the authorised representative of Eaton and Weidmüller in Vietnam. Contact VTL for model selection and a quotation.
