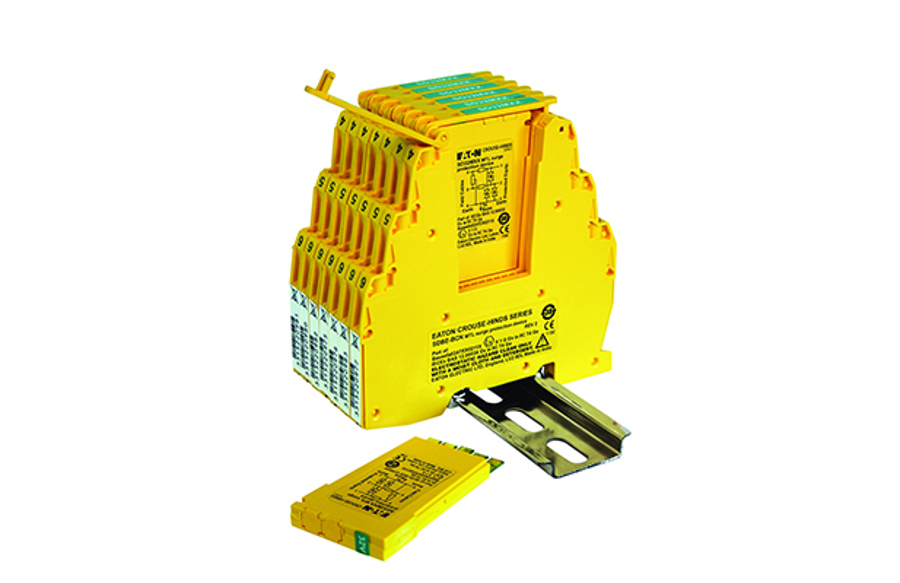

Eaton MTL SD Modular (SDM) surge protectors
MTL SD Modular (SDM): pluggable 7 mm signal surge protectors – replace without disturbing wiring, make-before-break, optional LED and fuse.
- Pluggable module, replace without touching wiring
- 7 mm width for high packing density
- Make-before-break – no signal interruption
- Optional LED diagnostics and fuse/disconnect
Overview
MTL SD Modular (SDM) builds on the proven MTL SD range with a pluggable design: all protection components sit in a removable plug, so modules can be replaced without disconnecting field wiring.
Key advantages
- Pluggable module for fast maintenance and less downtime
- Ultra-slim 7 mm width for high packing density
- Make-before-break design – no loop interruption or false DCS alarms during replacement
- Optional LED diagnostics and fuse/disconnect versions
- Backward compatible with the traditional SD range
- Testable with the MTL MLDT data surge tester
Models
Plugs and bases for 7 V, 16 V, 32 V and 55 V (MDX, MFX, MXL, MXX variants), feed-through plugs and HC high-current bases.
Viet Thang Loi Technology (VTL) is the authorised representative of Eaton and Weidmüller in Vietnam. Contact VTL for model selection and a quotation.
| Nominal voltage | 7 V, 16 V, 32 V, 55 V |
|---|---|
| Max. current | 700 mA |
| Peak surge current | 20 kA (8/20 µs) |
| Response time | < 1 ns |
| Bandwidth | 220 kHz |
| Operating temperature | –40 °C to +80 °C |
| Mounting | 35 mm DIN rail |
| Approvals | ATEX, IECEx – suitable for hazardous areas |
| Warranty | 10 years |
