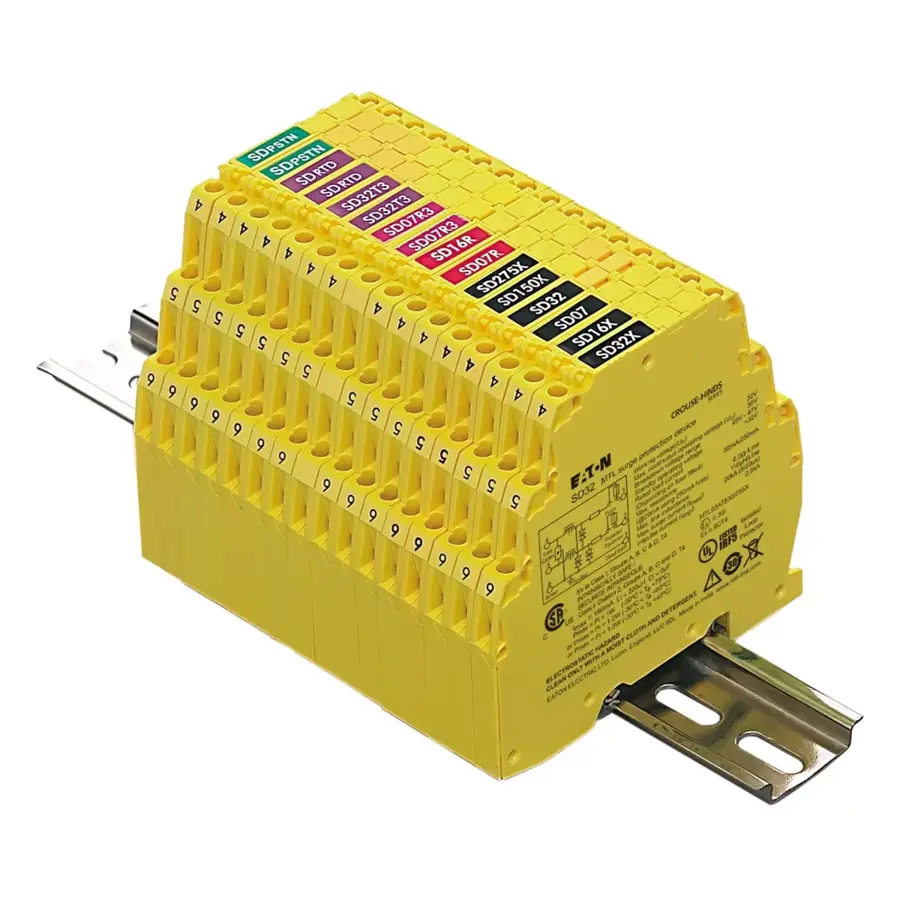

Eaton MTL SD16R signal surge protector
Eaton MTL SD16R: 7 mm data surge protector for RS232/RS485 and 2-wire loops, 50 MHz bandwidth, 20 kA surge rating, ATEX/IECEx.
- 7 mm ultra-slim module saves panel space
- Multi-stage hybrid circuit, 20 kA (8/20 µs)
- High bandwidth for RS232/RS485 communication
- Fast response < 1 ns
Overview
The SD16R is a high-bandwidth member of the MTL SD family for data and signal lines. Mounted on 35 mm DIN rail, it protects 2-wire loops and high-speed communication lines against lightning-induced surges and overvoltages.
Key data
- 7 mm ultra-slim module
- Multi-stage hybrid circuit, 20 kA (8/20 µs)
- Response time < 1 ns, bandwidth 50 MHz
- Operating temperature –40 °C to +80 °C
- IEC 61643-21, ATEX and IECEx
- 10-year Eaton warranty
Viet Thang Loi Technology (VTL) is the authorised representative of Eaton and Weidmüller in Vietnam. Contact VTL for model selection and a quotation.
