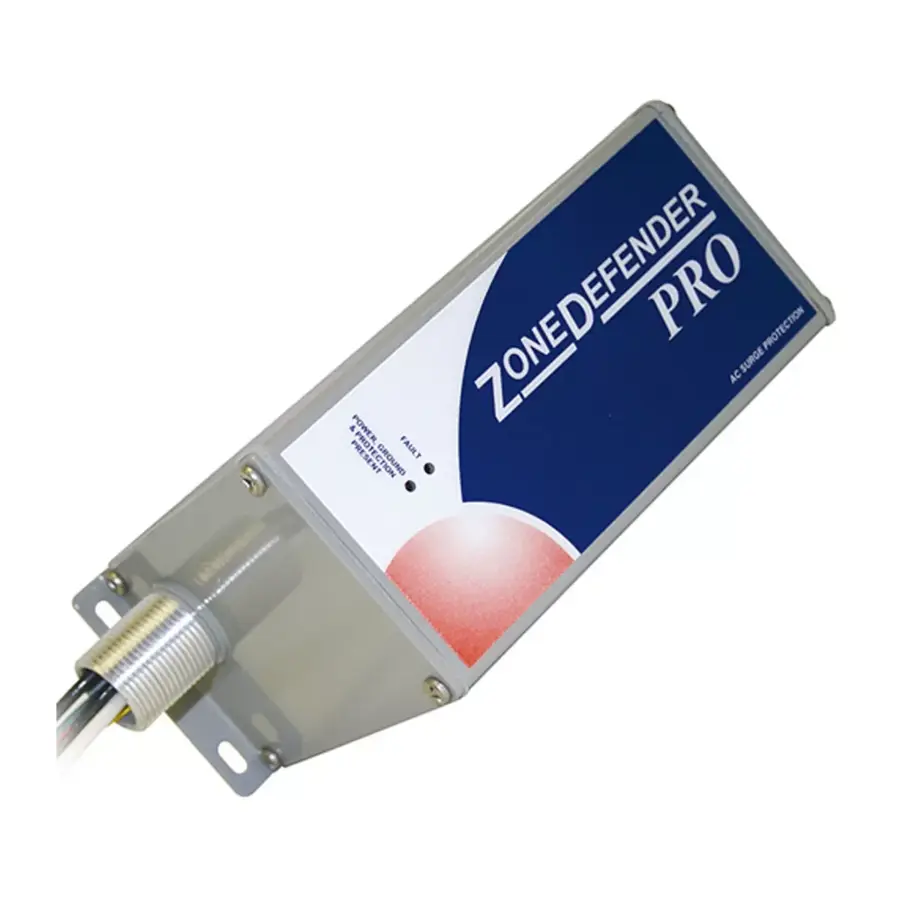

Eaton MTL ZoneDefender PRO surge protectors
ZoneDefender PRO: Type 2 AC power surge protection, 80/100/120 kA per phase, 4-mode protection, EMI/RFI filtering, LED and alarm contacts, NEMA 4X/IP66 enclosure.
- 80, 100 or 120 kA (8/20 µs) per phase
- 4-mode protection: L–N, L–G, L–L, N–G
- Integrated EMI/RFI noise filtering
- LED and Form C status contacts for remote monitoring
Overview
Eaton MTL ZoneDefender PRO is a range of Type 2 AC power surge protectors for industrial, commercial and infrastructure applications. Multi-stage MOV technology and integrated EMI/RFI filtering protect equipment from high-energy surges and high-frequency noise.
Features
- 80, 100 or 120 kA (8/20 µs) per phase
- 4 protection modes: L–N, L–G, L–L, N–G
- Integrated EMI/RFI filter
- LED, Form C contacts and audible alarm for remote monitoring
- Thermal fuses and short-circuit disconnect
- UL 1449 5th Ed., ANSI/IEEE C62.41, IEC 61643-11
- NEMA 4X / IP66 enclosure, –40 °C to +85 °C, 10-year warranty
Applications
Main distribution boards, ATS and PDB panels; VFDs, UPS and generators; PLC/HMI/SCADA; data centres, telecom, medical, ports, airports and petrochemical plants.
Viet Thang Loi Technology (VTL) is the authorised representative of Eaton and Weidmüller in Vietnam. Contact VTL for model selection and a quotation.
| Nominal discharge current (In) | 80 kA, 100 kA, 120 kA (8/20 µs) |
|---|---|
| Max. continuous voltage (Uc) | 120/240 V AC |
| Protection modes | L–N, L–G, L–L, N–G |
| Filtering | Integrated EMI/RFI |
| Standards | UL 1449 5th Ed; ANSI/IEEE C62.41; IEC 61643-11 |
| Enclosure | NEMA 1, 2, 3, 3R, 4, 4X, 12, 13 (IP66) |
| Operating temperature | –40 °C to +85 °C |
| Monitoring | LED, Form C contacts, audible alarm |
| Warranty | 10 years |
