Ốc siếc cáp chống cháy nổ Eaton Capri ADE-6FC
Capri ADE-6FC - Armored compound barrier cable gland
The Capri ADE-6FC is a widely approved cable gland for use with armored cables and includes a compound barrier.
Suitable for IEC IIC gas groups and NEC Class 1 Div 1 installations and with many cable types the Capri ADE-6FC offers a range of materials and thread options to cover all requirements.
Available as gland only or in pre-packed kit form for ease of ordering. Refer to our ADE Gland Accessories for further matching accessories.
PROTECTION TYPE
Flameproof Ex db, Increased Safety Ex eb, Restricted Breathing Ex nR, Dust Ex tb,
ENGINEERED COMPOUND
Provides a barrier seal between insulated cores
AREA CLASSIFICATION
Zones 1 and 2, Groups I, IIA, IIB and IIC Zones 21 and 22, Groups IIIA, IIIB and IIIC Class I, Division 1 and 2, Groups A, B, C and D Class I, Zone 2, AEx de II, Ex de II
Cable types
SWA - Steel wire armored cable
Steel wire armored cable for mechanical protection of conductors
SWB - Steel wire braided cable
Steel wire braided cable to give mechanical and signal interference protection to conductors
STA - Steel tape armored cable
Steel tape armored cable for mechanical protection of conductors
Braided marine shipboard cable
Cable designed for marine applications
Protection category
ATEX
Approved in accordance to EU directives for explosive atmospheres
IECEx
Approved in accordance to international IEC standards for equipment in explosive atmospheres
cULus Listed
Approved for use in Canada and the USA
Marine cULus Listed
Approved for marine applications in Canada and the USA
Other certificates: Inmetro, CCoE, KOSHA, EAC, & NEPSI.
Shipping applications: ABS, BV, DNV & Lloyds.

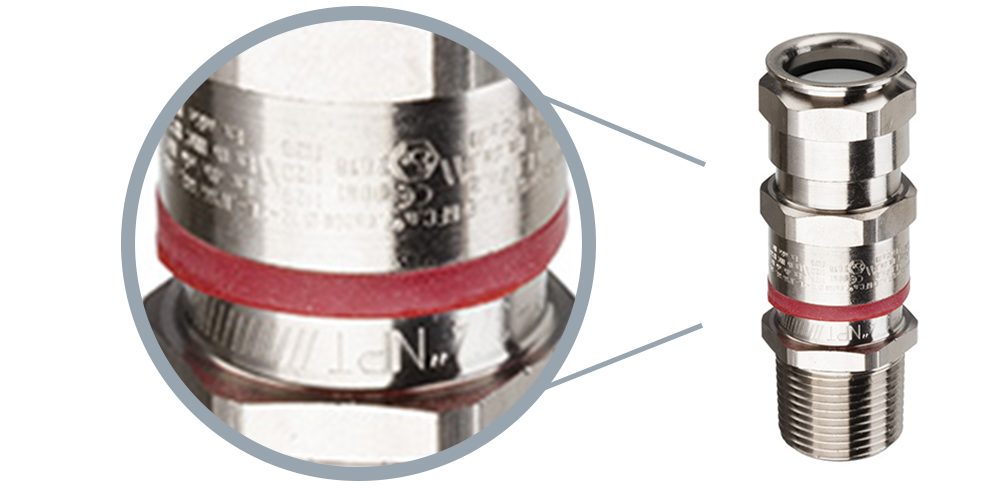

Red deluge seal
Easy and clear identification for "compound inside" aids inspection and sign off.
Full IP performance of the cable gland to comply with deluge test, salted environment and offshore application prevents armour corrosion
Universal Armour Clamping
The armour cage system is designed to secure and lock in place cable armour.
All cable types assembled into one gland with no requirement to reverse components.
Bạn quan tâm đển sản phẩm này ?
How to assemble an ADE-6FC cable gland with an armoured cable?
Functions of the Capri ADE-6FC cable gland
1. Sealing of cable conductors with compound barrier seal.
4. Specifically formulated elastomer for IP sealing on the outer sheath of the cable.
2. Deluge performance to avoid water ingress through the thread.
5. (Optional) Additional external cable clamping for strain relief.
3. Universal clamping design for earthing and bonding of armour shield. Provides mechanical strength and is suitable for all armour shield types, with no requirement to reverse components that may introduce risk of incorrect installation. Fully inspectable.
Eaton Capri ADE-6FC ordering information
