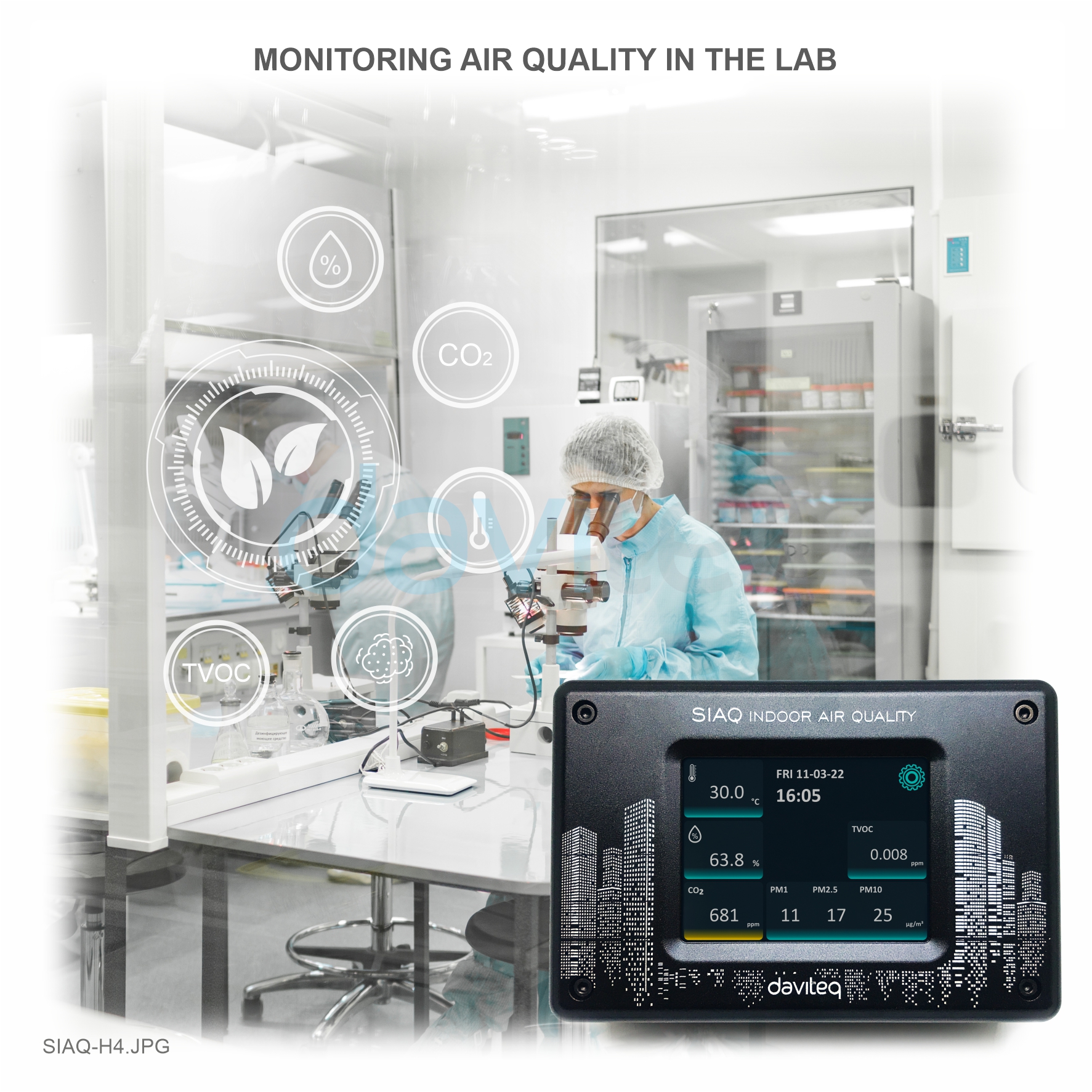

Smart Indoor Air Quality Monitor (IAQ)
SIAQ is a Smart and Modular designed Indoor Air Quality Monitor, equipped with a touch and beautiful color LCD display for easy viewing at a distance and noticing the alerts by color changing. With ModbusRTU or ModbusTCP, it can easily integrate into the existing BMS system, PLC, SCADA system in your facility, or factory. With Wifi, Ethernet, or NB-IoT version, it can connect to Globiots platform or any IoT platform for remote monitoring and data analytics. For Sigfox and LoRaWAN versions, please contact us. The device has built-in sensors to measure temperature, humidity, CO₂, PM1.0, PM2.5, PM10, TVOC, and HCHO formaldehyde. Those advanced sensors are from Germany, Japan, and the USA to deliver the highest accuracy and stability.
This professional smart IAQ monitor is used in office buildings, schools, hospitals, factories, warehouses, laboratories... or any facility.
Advanced Environment Sensors
Deliver high accuracy and stable measurment
Modular Design
Allow customise the measuring easily
Touch color LCD Display
Easy view in the far distance and noticing the alerts by different colors
IoT Connectivity
Connect to Globiots or any IoT Platform via WiFi, Ethernet, NB-IoT, Sigfox, LoRaWAN
Interested with this product
Measurement | All in one device to measure indoor ambient Temperature, Humidity, CO₂, PM, TVOC, and HCHO formaldehyde. |
Temperature range/ resolution/ accuracy | -20∼70℃/ 0.1℃/ ±0.1℃ |
Humidity range/ resolution/ accuracy | 0∼100% RH/ 0.1% RH/ ±3.0% RH |
CO₂ range/ resolution/ accuracy | 0∼40000 ppm/ 10ppm/ (±30ppm + 3% reading) |
HCHO range/ resolution/ accuracy/ Limit of detection | 0-1000 ppb/ 1 ppb/ ±20 ppb or ±20% reading which ever is greater/ < 20 ppb |
HCHO sensor life | > 6 years |
Mass concentration | PM1.0, PM2.5, and PM10 |
Mass concentration range | 1∼999μg/m³ |
Mass concentration resolution | 1μg/m³ |
Mass concentration accuracy | ±10μg/m³ |
Lower limit of detection | 0.3μm |
Time to recalibrate PM sensor | 4.5 years |
TVOC range/ resolution/ accuracy | 160∼10000ppb/ 1ppb/ ±15% of Reading |
COMMUNICATION | |
Display | None or 2.8" color touch screen LCD display |
IoT Connectivity | Select WiFi 2.4GHz or Ethernet or 3G-Dual Band or 4G Cat M1/NB1 |
SCADA Connectivity | Optional ports: RS485/ModbusRTU, Ethernet or WiFi with ModbusTCP |
Housing | ABS plastic and Anodized Aluminum (model with LCD Display), IP20 protection |
Power supply | 220VAC/50Hz (adapter) |
Dimension/ Net weight | 120x82x55 mm/ <500g |
ORDERING INFORMATION
ITEM CODE | DESCRIPTION |
SIAQ-WF-01-N | Smart Indoor Air Quality Monitor, WiFi 2.4GHz, TEMPERATURE-HUMIDITY-TVOC-CO2, No display |
SIAQ-WF-02-N | Smart Indoor Air Quality Monitor, WiFi 2.4GHz, TEMPERATURE-HUMIDITY-TVOC-CO2-PM2.5-PM10, No display |
SIAQ-WF-02-D28 | Smart Indoor Air Quality Monitor, WiFi 2.4GHz, TEMPERATURE-HUMIDITY-TVOC-CO2-PM2.5-PM10, 2.8" LCD with touch |
SIAQ-RS485-02-D28 | Smart Indoor Air Quality Monitor, RS485 ModbusRTU output, TEMPERATURE-HUMIDITY-TVOC-CO2-PM2.5-PM10, 2.8" LCD with touch |
