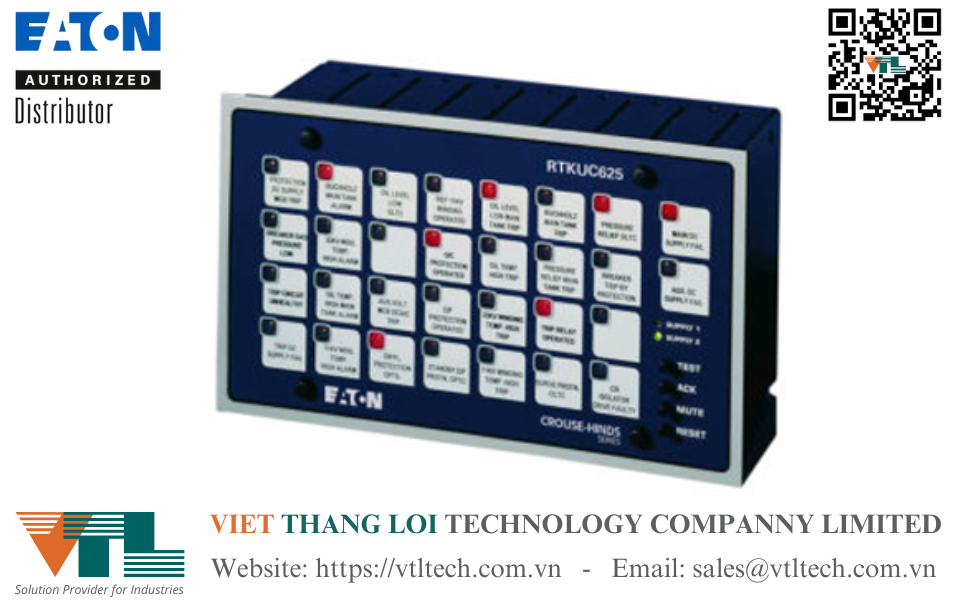

The RTK UC625 Alarm System, developed from the field proven P625 range of alarm annunciators, offers the latest in ASIC technology packed into an compact design for applications where panel space is at a premium.

Overview

The RTK UC625 is a compact, fully programmable alarm annunciator designed for critical process monitoring across all industrial sectors. Developed from the proven P625 range, it incorporates advanced ASIC technology, dual redundant power supplies, and flexible alarm sequencing in a space-saving modular design.

Key Features

• Available in sizes from 12 to 40 alarm points

• Programmable alarm sequences (ISA S18.1-1979 compliant)

• Dual horn relays for critical/non-critical alarms

• Auto-accept timer for unmanned applications

• Sleep mode for battery-saving in substations

• Integral relays for SCADA/DCS/RTU interfacing

• LED display with super-bright 8 mm indicators

• Dual redundant universal power inputs (85–264 VAC / 88–300 VDC)

• Optional 24 VDC secondary supply

• Field contact voltage monitoring with relay output

• IP51 front protection (IP54/IP56 optional enclosures)

• Maintenance from front panel – no tools required

• Film legend engraving for easy label customization

• Input voltage options: 24 VDC (standard), 48/125/250 VDC (optional)

• EMC & LVD compliant (EN61000, EN61010, IEC61010)

• Operating temperature: –40 °C to +80 °C

• Certifications: ATEX, IECEx, FM, CSA, UL

Applications

• Power stations & substations

• Oil & gas, chemical, and pharmaceutical plants

• Water treatment and utilities

• SCADA, RTU, DCS alarm monitoring

• Hazardous area installations

About Eaton MTL Instruments

Eaton MTL Instruments, a division of Eaton Corporation (USA), is a global leader in surge protection solutions for signal, data and power applications. With over 50 years of experience, MTL products are engineered to perform reliably in harsh and hazardous environments.

Viet Thang Loi Technology Company Limited is the authorized distributor of Eaton MTL Instruments (MTL) and Eaton Crouse-Hinds (CEAG) in Vietnam. Please contact us for more details.
